Universal Wideband LNB Bracket – SKY TV Dish LNB MK1, MK2 MK3 & MK4 (Legacy)

Universal & Wideband LNB – SKY TV Dish LNB Bracket  MK1, MK2 (Legacy - slide in) MK3 & MK4 (clip over)

Over the years the SKY TV Satellite Dish has changed in minor ways, and the Bracket that holds your LNB device is one of the things that can cause an issue when repairing or upgrading your dish

This might not be obvious when you first look at your dish but the part that holds the LNB in place is different on older dishes

Brands and Changes

SKY & ZINWELL LNBs have a smaller neck then the other Brands such as Geosync or Labgear, all the items we sell in this pare are for the SKY type.

Please check the pictures to match your bracket

MK1 - This bracket inserts inside the support arm & is smaller than the MK2 Version, slide in, but often comes with a second adapter to make it a MK2 size.

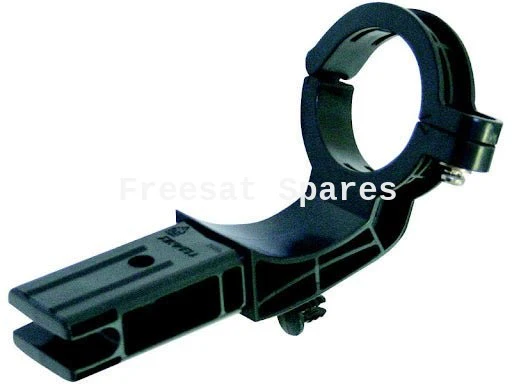

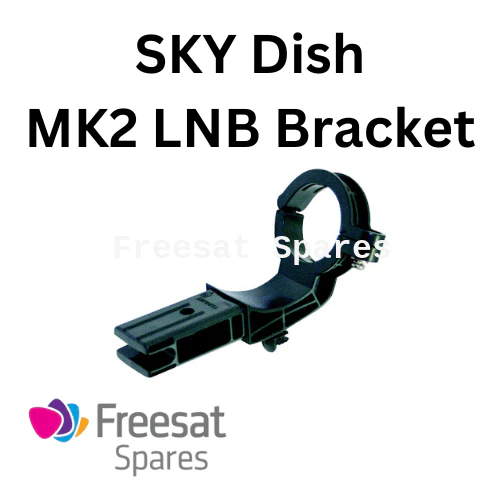

MK2 - This bracket inserts inside the support arm & has an insert of 30mm by 20mm, slide in legacy.

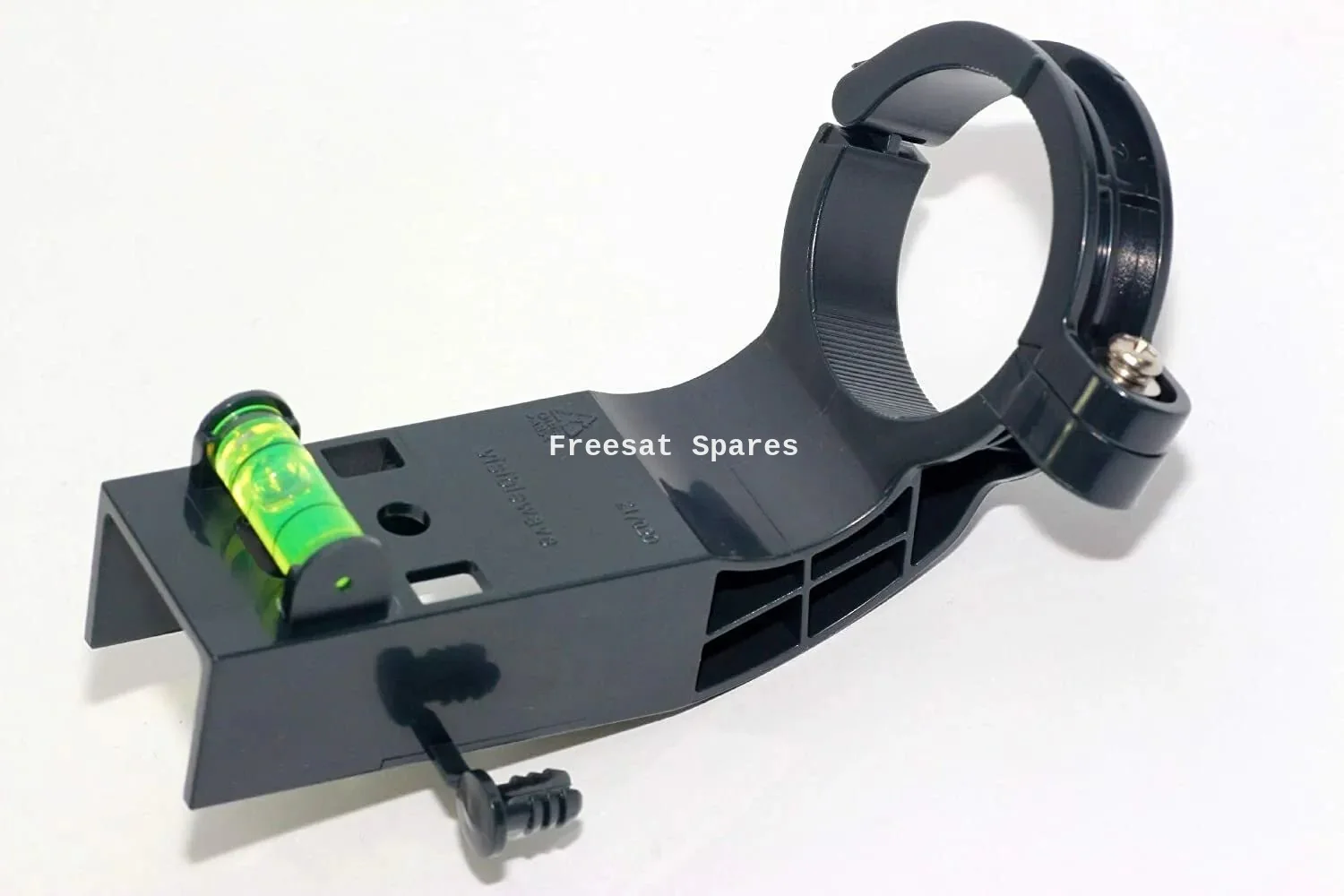

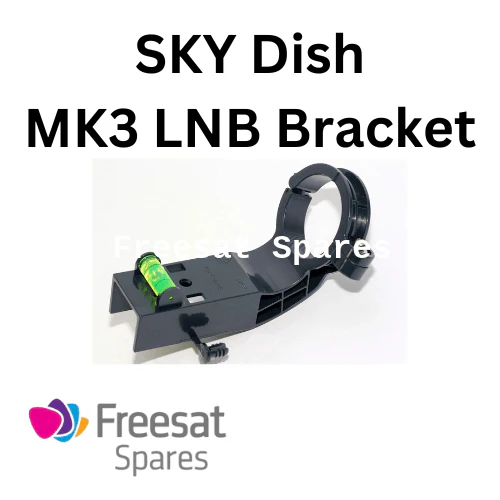

MK3 - This is a Clip Over Design for Support arms with slimline arms

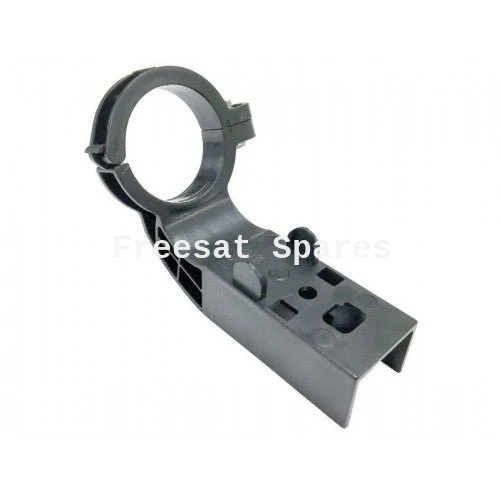

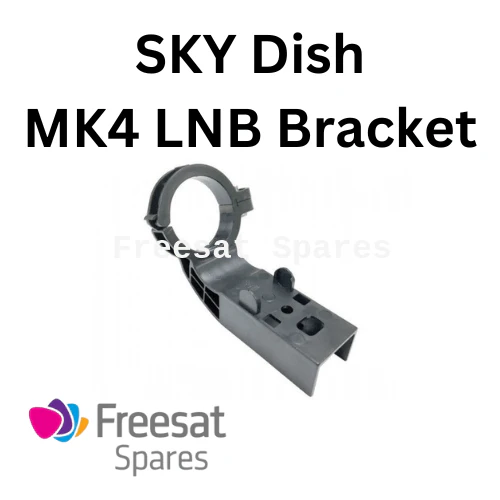

MK4 - This is the current Model used since 2018

Things to consider

As an extra note we suggest using shotgun type cable with these LNBs to reduce the weight on the end of the dish support.

With these brackets you can fit most SKY (branded) LNBs Quad, OCTO & Wideband - 37mm Inside Diameter (42mm Ring outer)

Don't not fit Geosync or Lab gear LNBs

Dec 2025 stock update - we have a limited number of LNBs with Mark 2 style brackets see the details here

If you need technical help please email us before you order, contact us HERE

PLEASE NOTE LNBs Brackets ARE ONLY RETURNABLE IF FAULTY OR STILL SEALED AS NEW AND ARE EXCLUDED FROM OUR STANDARD RETURNS POLICY.
